Epoxycast Coil Transformers

Epoxycast Coil Transformers for Severe Industrial Environments

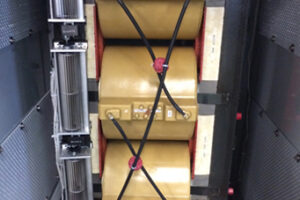

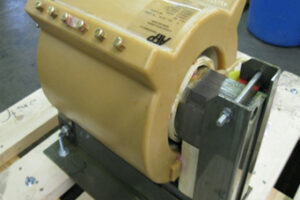

At AFP Transformers Corp., our pressure-molded Epoxycast coil transformers engineered in Edison, New Jersey, deliver unmatched advantages over traditional liquid-immersed and standard open-wound dry-type transformers. Designed specifically for high-reliability industrial and utility applications, Epoxycast transformers feature primary windings encapsulated directly under vacuum pressure within high-grade epoxy resin molds. This solid encapsulation eliminates air voids, locks coil windings firmly in place, and shields internal components from aggressive airborne contaminants, moisture, and chemical vapors.

Featuring elevated Basic Impulse Levels (BIL) up to 200kV, AFP Epoxycast transformers withstand severe transient voltage spikes and high power surges without mechanical deformation or electrical breakdown. Because they contain zero flammable liquids or hazardous oils, Epoxycast units do not require expensive fire-suppression vaults, oil containment basins, or environmental compliance monitoring—offering procurement officers and system engineers flexible, lower-cost installation options inside industrial plants, commercial buildings, and outdoor enclosures.

EpoxyCast Transformer Technical Capabilities

AFP Transformers manufactures a full line of custom and OEM replacement Epoxycast transformers spanning voltage classes from 600V up to 34.5 kV. Secondary coils are processed using vacuum pressure impregnation (VPI) with high-grade electrical polyester resins to ensure total environmental resistance and thermal efficiency.

Industry Focus & Field Applications

AFP Epoxycast transformers are deployed globally across demanding sectors where operational downtime, thermal stress, or environmental exposure cannot be tolerated:

5kV to 15kV Class EpoxyCast Engineering Specifications

Single Phase Matrix (5kV to 15kV Class)

Standard kVA capacities, primary line voltages, and BIL impulse ratings for single-phase installations:

Three Phase Matrix (5kV to 15kV Class)

Industrial three-phase power ratings engineered for balance, high efficiency, and maximum surge immunity:

Quality Assurance & Industry Standards Compliance

Every Epoxycast transformer manufactured by AFP Transformers undergoes 100% full-load routine and type testing inside our ISO-aligned testing laboratory in Edison, New Jersey. Test parameters (Voltage, Current, Real & Reactive Power, VA, Power Factor, Efficiency) are digitally logged and certified to exceed North American and International regulatory standards:
